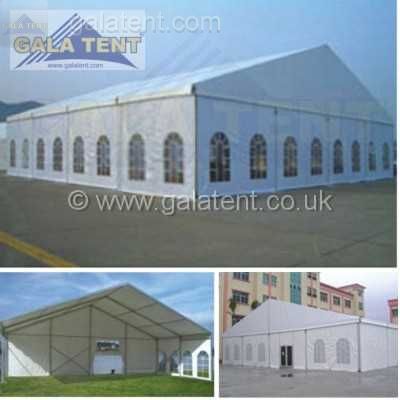

Speed, strength, safety and simplicty
The frames of Clearspan Gala Tent Modular structures are manufactured from high-grade aluminium extrusions to provide strength whilst minimising weight;
there is no need for centre supports or guide ropes. Gala Tent Modular can be located on most surfaces including tarmac, concrete and grass. The
lightweight frame makes Gala Tent Modular quick, simple and safe to erect with no special skills or tools required.
Gala Tent Modular can be manufactured to meet virtually any size requirement.
Versatility and adpatability- Extending your Modular marquee with add-on bays
Gala Tent Modular is extremely versatile. Typical bay sizes range from 3m to 5m and you can purchase add-on bays to make your structure larger. Gala
Tent Modular’s adaptability means you can downsize your marquee if required. For example, your 6m x 12m Gala Tent Modular can quickly be transformed
into a 6m x 3m, 6m x 6m or 6m x 9 structure – and without needing any additional components!
Transformability
You can transform your Gala Tent Modular into a truly spectacular venue by incorporating new stunning stain roof and wall linings.
Durability and quality – Gala Tent Modular is built to last, and here to stay.
Gala Tent Modular’s heavy-duty PVC material simply slots into channels in the high-grade aluminium extruded framework - no bungee straps or ties are

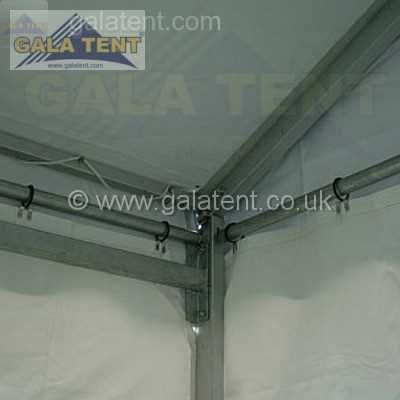

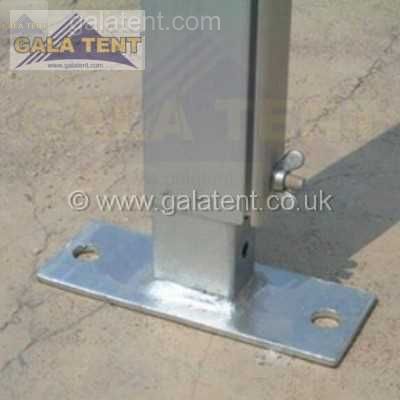

required. The joints and pedestal feet are made from heavy-duty galvanised steel and are bolted to the frame. Gala Tent Modular has been proven to
withstand wind speeds of up to 80 mph when using the recommended tensions bars and ground anchor pegs. Gala Tent Modular is like a chateau with PVC
walls!
Get covered with a Gala Tent Modular – to see our Modular video click here
Here are more specific details on the materials used in your Gala Tent Modular structure:
Canopy Roof Material

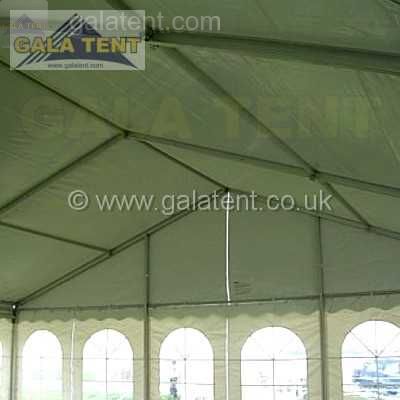

The Gala Tent Modular canopy is designed in a classical wave drape pattern. The material is UV-stabilised, anti-fungus treated, and fire-retardant to
stringent EU standards. Many modular marquees use 450g to 600g PVC. Gala Tent Modular uses 750g PVC making it, we believe, the highest specification
model available.
The Gala Tent Modular roof material is fire-rated to BS 5867:1980 Part 2
Side Panel Material
Gala Tent Modular side panel covers are also UV-stabilised, anti-fungus treated and fire-retardant to stringent EU standards. 650g PVC material is used
and the panels can be supplied with or without windows. The side panels include a central zip entry so access can be created at any position around the
structure and they can be tied back to the leg poles if desired. The Gala Tent Modular side panel material is fire-rated to BS 5867:1980 Part 2.
Roof & Wall Satin Linings
Gala Tent is delighted to introduce its new high-quality, fire-retardant, satin lining. The lining helps to create the effect and atmosphere perfect for
weddings, parties, company meetings or corporate events. The 3m long lining drapes can be gathered in to 1m for maximum effect. Linings are available in
a variety of colours and fabric types and meet all current EU flame retardant requirements - BS 5867:1980 Part 2.
Galvanised Steel Ground Bars
Whilst some manufacturers of modular structures sell ground bars as an optional extra, all Gala Tent Modular structures are supplied with ground bars as
standard. The bars simply slot through the side panels and bolt to the legs to provide maximum stability. The bars also provide a clean, taut finish to
the side panels of your marquee. With Gala Tent Modular there are no crinkly, sagging panels blowing in the wind!
|
 |
Wooden Modular Flooring on a Steel Sub-frame
Gala Tent’s modular wooden flooring provides a level, solid and stable platform – ideal for dancing the night away!
The wooden flooring sits on a galvanised steel subframe which gives it its strength and solidity. The subframe is constructed in two layers:
- The bottom layer consists of steel cross-bearers: each cross-bearer has an integral base plate. The base plates are fixed firmly to the ground using earth anchors.
- The second layer comprises steel joists which sit on top of the cross-bearers. Lugs on the cross-bearers ensure the joists are held securely and accurately in place.
The pressure-treated wooden boards are laid on the subframe and locked in place by wooden battens. For adjoining flooring modules, an extruded
aluminium edging is used to ensure perfect continuity.
Once you’ve laid your flooring, you can connect the legs of your tent structure directly into the subframe base plates.
Glazed Door Units
Your Gala Tent Modular can include high quality single or double door units. All door systems are supplied with a standard height of 2.10m.
Glazed Windows
Glazed window walls are available in a range of sizes to suit all Gala Tent Modular structures. Manufactured from durable PVC material, and
incorporating the latest in all-weather adhesives and high-frequency welding, the contemporary design of Gala Tent Modular’s window walls enhances
the visual appeal of your marquee.
When you purchase your Gala Tent Modular structure you have the option of upgrading from standard white sidewall sections to window walls: clearly
an attractive option.
Solid Wall System
According to the British Plastics Federation, ABS (Acrylonite Butadiene Styrene) is, ‘..an ideal material wherever superlative surface quality,
colour fastness and lustre are required.’ ABS has, ‘…a good balance of properties (including) toughness, strength and temperature resistance.’ It is
likely that many of your car’s exterior trim panels are manufactured from ABS.
The Gala Tent ABS ‘solid wall’ system can be fitted on any of our modular structures in place of standard sidewall sections: it can also work in
tandem with our modular wooden flooring. Single or double door units can be incorporated into your ABS ‘solid wall’ system.
The ABS ‘solid wall’ system is quick and easy to install, and enhances your Gala Tent structure by providing a feeling of robustness and permanency.
Optional Equipment
Gutter kits and infill panels are used when joining 2 or more structures in parallel. Heavy-duty anchor pegs are also a strongly recommended optional
extra. Tables, chairs, heating and lighting are also available.
Here are just one or two ideas as to how you can get the most out of your Clearspan Gala Tent Modular Marquee:
- Walkways
- Parties
- Events
- Shows
- Garaging
- Storage
- Swimming pool cover
- Stabling
- Horse jumping and sporting events
- Arenas
- Garden centres
- Weddings
- Car showrooms
- Hospitality
|
