Pit Perch

Product description

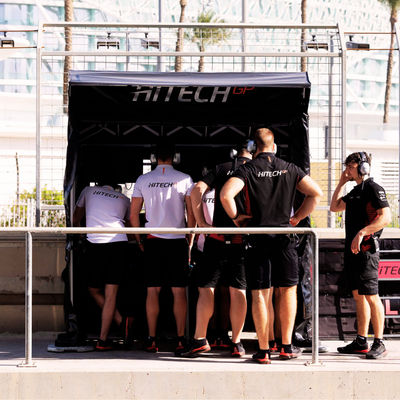

The Pop-Up Pit Perch is a purpose-built motorsport control shelter developed exclusively for our motorsport brand, Gala Performance. Designed and engineered in-house following almost two years of development, it provides teams with a dedicated, enclosed pit wall workspace that can be deployed quickly and packed efficiently for transport.

Constructed from 620gsm heavy-duty PVC, the Pop-Up Pit Perch is built to handle long hours at the circuit in demanding conditions. Integrated features include accessible openings, internal storage pockets, a fitted work table, and mounting brackets for up to three monitors, allowing teams to operate data, timing, and communications from a single protected position.

The structure is designed to adapt to changing race conditions. It can be fully enclosed during overnight stints or wet weather, then opened up as conditions improve. Side windows roll up for direct pit wall communication, while removable panels allow airflow and visibility during daytime running.

Supplied with a wheeled transport bag, the Pop-Up Pit Perch folds down into a compact footprint, making it easy to load into transporters and trailers while still providing meaningful storage and working space once erected.

The Pop-Up Pit Perch is currently supplied with black PVC covers as standard. Printing and branding options are available for teams looking to customise the unit to match their livery.

Included accessories

LED light

Length: 1160mm

Integrated table

Material: White powder-coated steel
Length: 1856mm
Depth: 340mm
Height to top of table: 930mm
Table thickness: 25mm

Technical specifications

Packed dimensions

1630mm x 650mm x 370mm

Total weight

Approx. 62kg

Footprint when erected

Width: 800mm
Length: 2070mm
Height to apex: 2410mm

Height measurements

Height to eave: 2100mm
Height to apex: 2410mm
Height to peak: 2280mm

Door dimensions

Main door:
900mm to 1800mm (width) x 2000mm (height)

Left / Right doors:
640mm (width) x 1630mm (height)

Window dimensions

Front window:
1770mm x 565mm
1075mm from ground to bottom of window

Left / Right windows:
475mm x 570mm
1065mm from ground to bottom of window

Valance height

Approx. 350mm

Who uses the Pop-Up Pit Perch

The Pop-Up Pit Perch has been developed specifically for motorsport teams that need a reliable, repeatable pit wall setup without committing to permanent structures.

It is commonly used by:

• Endurance racing teams

• GT and touring car teams

• Motorcycle race teams

• Karting teams operating at national and international level

• Trackday support crews and driver coaching teams

The design is particularly well suited to endurance racing, where teams require overnight protection, integrated equipment mounting, and fast transitions between enclosed and open configurations.

Why a purpose-built pit perch matters

Traditional pop-up shelters and ad-hoc pit wall setups are rarely designed around the realities of motorsport operations. Monitor mounting, data access, weather protection, and efficient pack-down are often afterthoughts.

The Pop-Up Pit Perch addresses these issues directly by providing:

• A defined, enclosed working environment

• Integrated mounting for screens and equipment

• Fast deployment and pack-down

• Compact transport dimensions

• Flexibility across changing weather and race conditions

Developed exclusively for Gala Performance, this is a motorsport-first solution.
