How to Order Swisstrax Modular Floor Tiles

We get it — ordering Swisstrax might feel a bit complicated at first. But don’t worry — once you know the basics, it’s actually pretty straightforward.

Here’s how to get it right the first time.

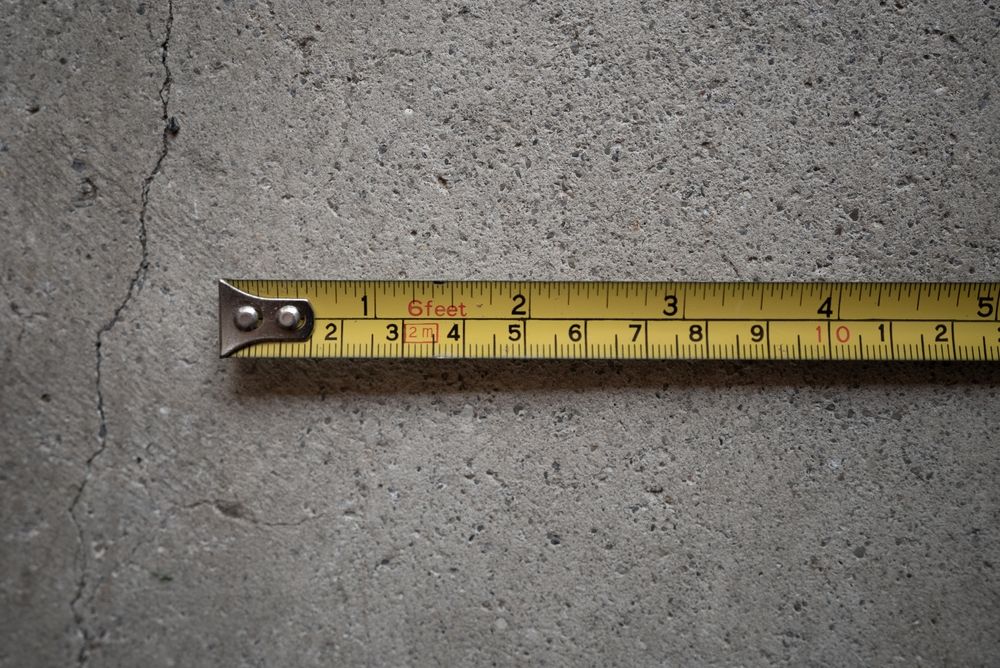

Step 1: Measure Your Space

Swisstrax tiles are 40cm x 40cm. That means you’ll need 6.25 tiles per square metre — or more simply:

Measure your space in metres (width x length), multiply each measurement by 2.5, and round up to the next full tile.

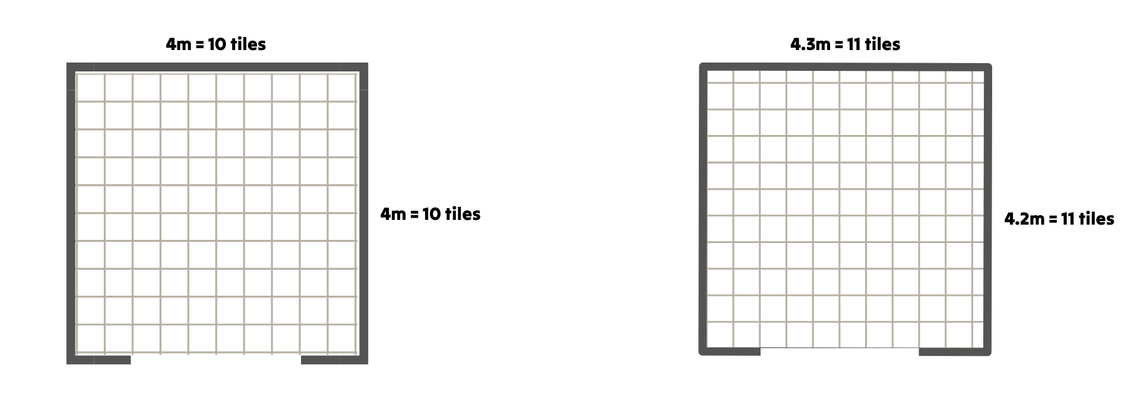

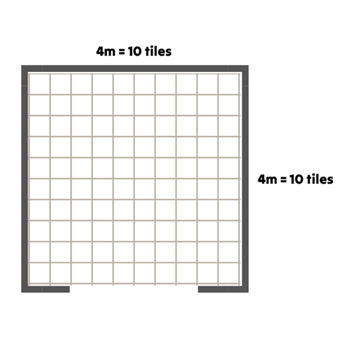

Example 1: Simple Single Colour Floor

If your garage is 4m x 4m:

• 4 x 2.5 = 10 tiles wide

• 4 x 2.5 = 10 tiles long

• You need 10 x 10 = 100 tiles

Easy. Pick your colour and order with confidence.

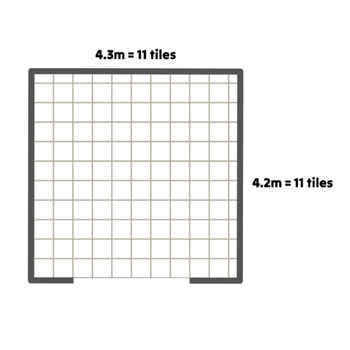

Example 2: A Floor That’s Not a Perfect Fit

Let’s say your space is 4.2m x 4.3m:

• 4.2 x 2.5 = 10.5 → round up to 11 tiles

• 4.3 x 2.5 = 10.75 → round up to 11 tiles

• You’ll need 11 x 11 = 121 tiles

You’ll just need to trim some tiles at the back or side to make it fit neatly.

Step 2: Choosing Colours

You’ve got two main options here — and both are easy to plan:

A) One Colour All Over

No extra calculations needed. Just work out how many tiles you need and order them all in your chosen colour.

B) Chequered Pattern

Want a 2-colour checkerboard look?
Just divide your total number of tiles by two, and order half in one colour, half in the other.

For example: 100 tiles total = 50 black + 50 grey

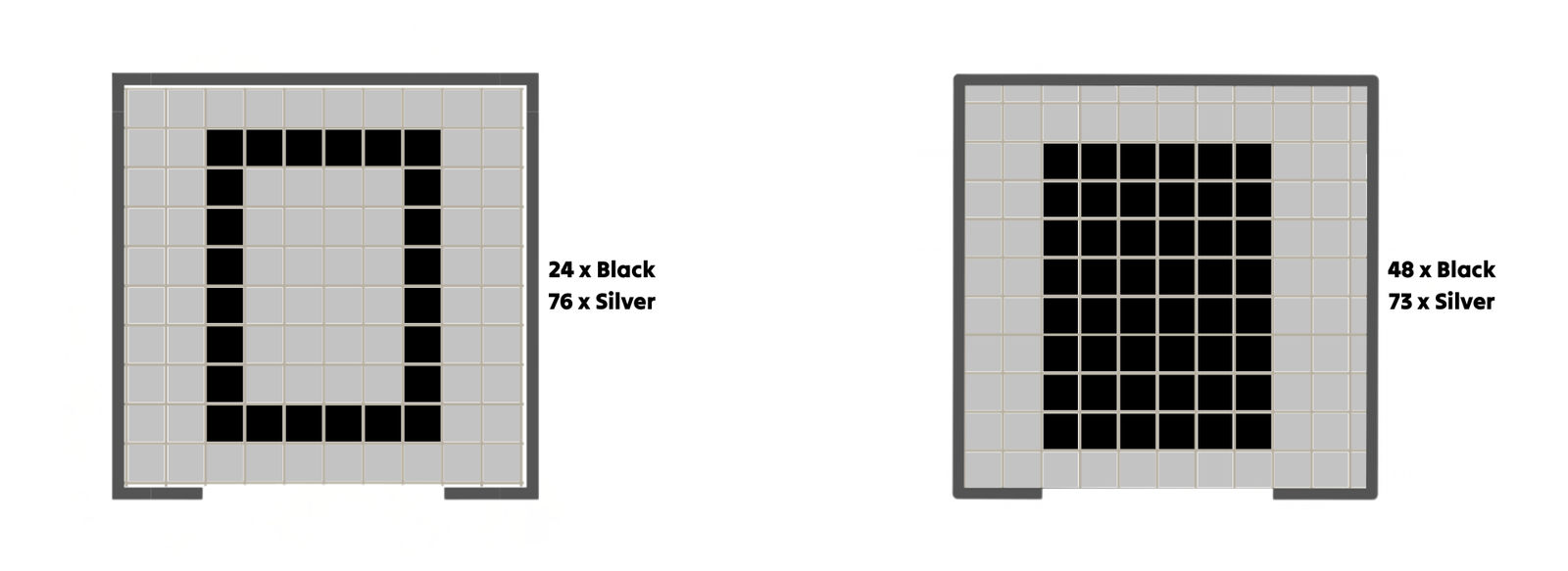

C) Feature Area or Colour Block

If you want to highlight a section — like where a vehicle might sit — here’s a simple guide:

• A rectangle (approx. 2.4m x 3.2m) needs 48 tiles

• A single tile border around that area would need 24 tiles

So for example, you might order:

• 48 red tiles for the car zone

• 24 black tiles for the border

• Then the rest in your base colour

Need help figuring it out? Just ask — we’ll help you plan it.

Step 3: Don’t Forget the Edge Ramps

If you’ve got open sides (like a garage door entrance), you’ll want ramped edging so vehicles can drive onto the tiles smoothly.

• Each ramp is 40cm wide

• Just measure the opening and divide by 0.4 (or multiply metres by 2.5)

Example:

If your garage door is 2.4m wide:

• 2.4 x 2.5 = 6 ramps

Some people order one extra just to be safe.

That’s It!

Once you know:

• The size of your space

• Your tile colours

• Any edges you need

You’re ready to place your order. If you need help with special shapes or colour layouts, just drop us a message. We’re also working on a new design tool — but in the meantime, we’ll make sure you get exactly what you need.
