How to Put Up a Pop-Up Gazebo

Before You Start

Before erecting your gazebo:

• choose a flat, clear surface
• check all parts are present
• avoid setting up in strong winds
• ensure the canopy is dry and clean
• have a second person available for larger models where possible

Even though smaller gazebos can often be assembled by one person, larger structures such as 3m x 6m or 4m x 8m gazebos are much easier to manage - and safer - with two or more people.

How to Put Up a Gazebo

Step 1. Remove the Gazebo from the Bag

Carefully remove the frame and canopy from the storage bag.

Place all components on a flat surface and avoid dragging the frame across rough ground.

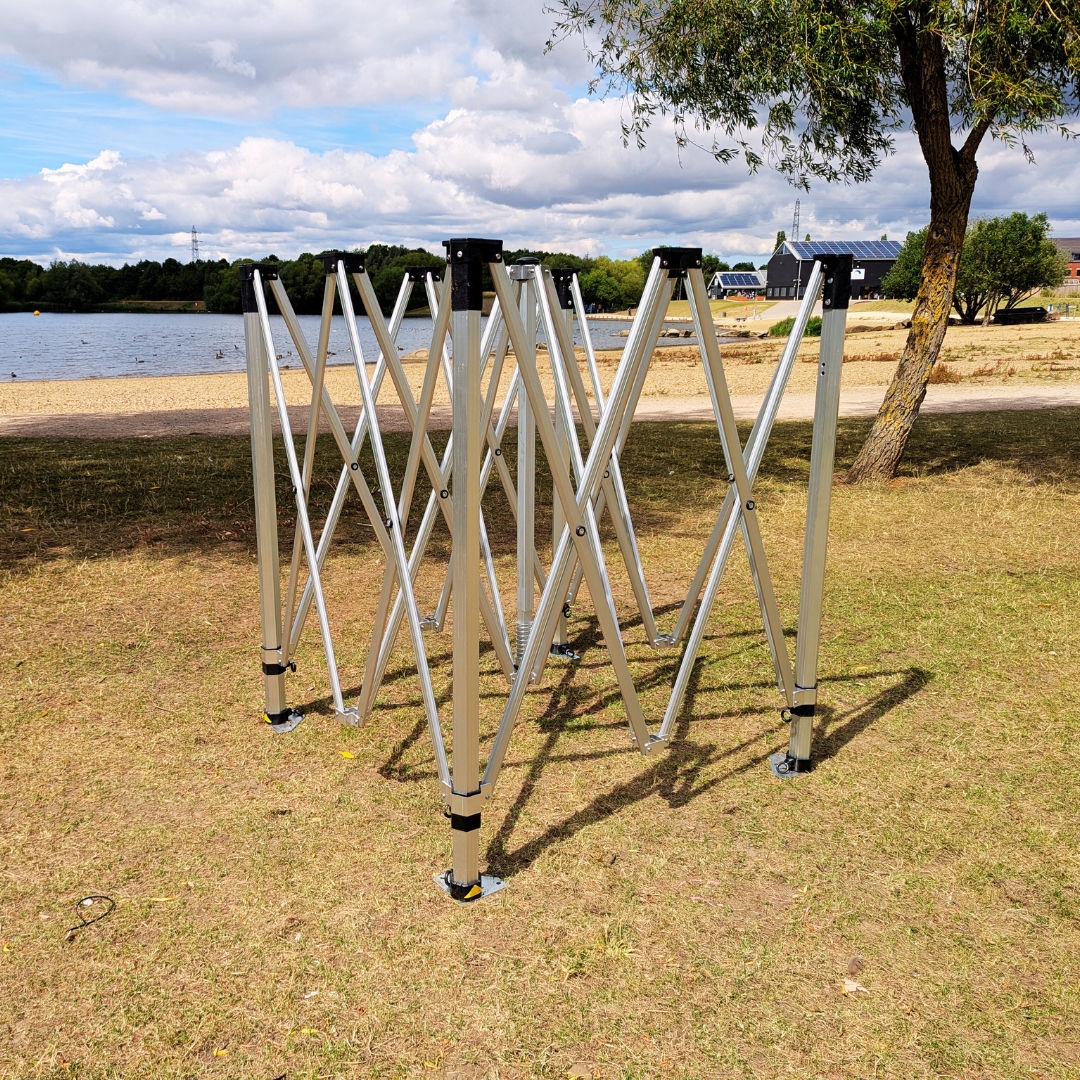

Step 2. Partially Open the Frame

With one person at each end where possible, gently pull the frame apart slightly.

The truss bars should begin forming diamond shapes as the frame expands.

Do not fully extend the gazebo at this stage.

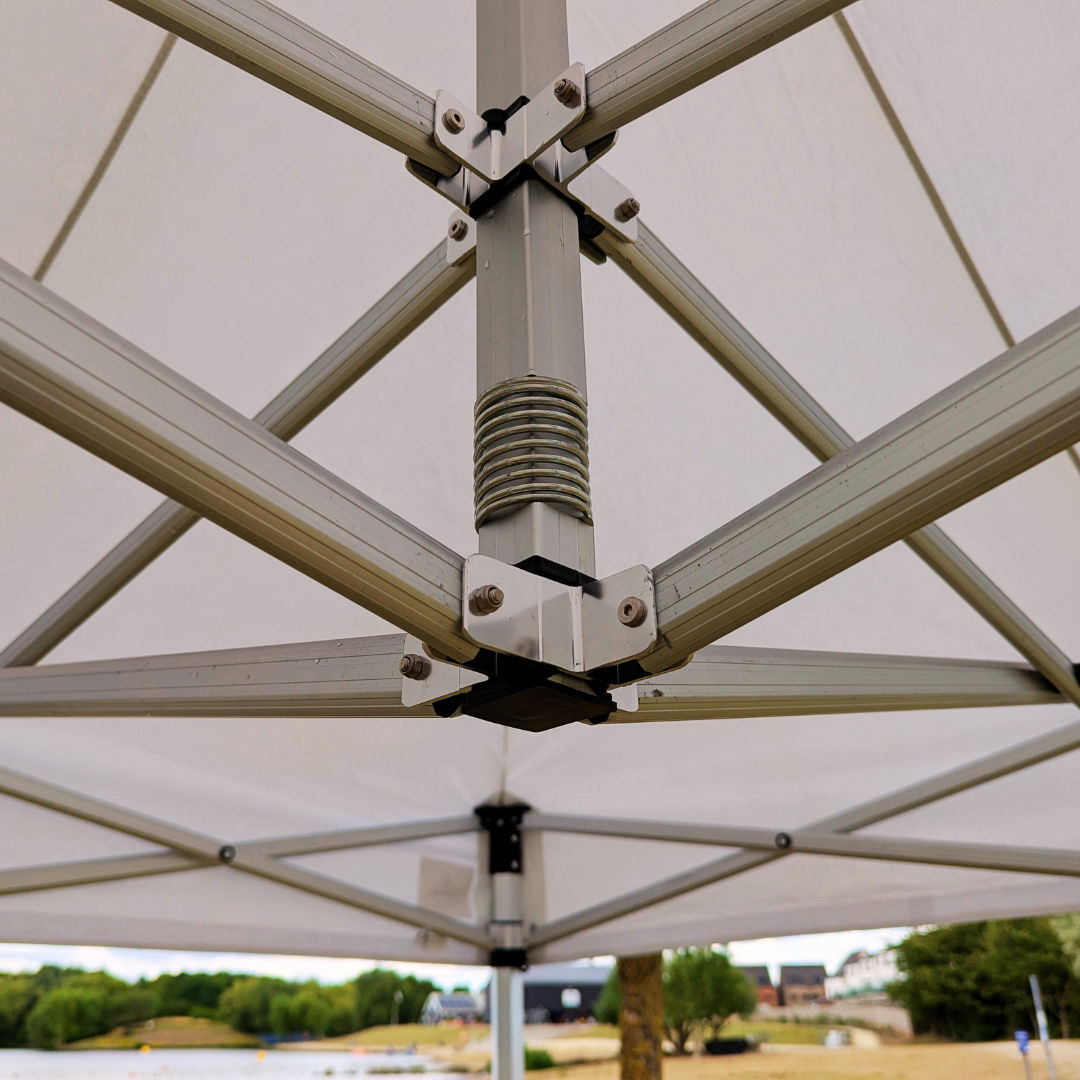

Step 3. Open the Roof Mechanism

Move backwards slowly while supporting the frame and squeezing the roof mechanism into position.

The legs should begin separating naturally as the structure opens.

Step 4. Place the Canopy Over the Frame

Once the frame is partially open, place the canopy over the top of the structure.

Align the canopy correctly so:

• corners match the frame corners
• Velcro straps align with the legs
• roof sections sit evenly

Step 5. Secure the Peak Pole Socks

Pull the protective canopy socks over the peak poles to secure the roof section in place.

This helps tension the canopy correctly and prevents movement once erected.

Step 6. Fully Extend the Frame

Continue pulling the legs apart using the truss sections until the gazebo reaches its fully open position.

Avoid forcing the frame if resistance is felt.

Step 7. Lock the Sliders into Position

At each corner, push the slider mechanism upwards until it clicks securely into place.

Repeat this process on every leg.

Step 8. Raise the Gazebo Legs

One side at a time, extend the telescopic legs to the desired height.

The snap buttons should click firmly into position.

Step 9. Attach the Canopy Clips

Secure the canopy to the frame using the integrated clips or Velcro fastenings.

Straighten the canopy fabric so it sits evenly across the structure.

Step 10. Secure the Gazebo Properly

This is one of the most important steps.

Secure the gazebo using:

• weights
• tie-down kits
• pegs
• guy ropes

Weights should be used on every leg, particularly on hard surfaces such as concrete or tarmac.

👉 Explore gazebo weights and anchoring accessories: /gazebo-accessories

Step 11. Enjoy Your Gazebo

Once secured correctly, your gazebo is ready to use.

Whether you’re creating:

• a garden shelter
• a market stall
• a motorsport paddock
• a hot tub shelter
• a construction area

a properly erected gazebo provides fast, reliable outdoor cover.

How to Take Down a Gazebo

Taking down a gazebo is essentially the reverse of the setup process, but there are several important steps that help avoid accidental damage.

Step 1. Remove All Clips and Fastenings

Before collapsing the frame, unclip all canopy fixings attached to the structure.

This reduces strain on both the frame and canopy material.

Step 2. Lower the Legs

Reduce the leg height by at least two settings before collapsing the frame.

This makes the structure easier to control during dismantling.

Step 3. Release the Sliders

Pull the spindle pins or release catches at the top of each leg to disengage the sliders.

Step 4. Partially Collapse the Frame

Gently push the frame inward until the gazebo is approximately halfway closed.

Avoid forcing any sections.

Step 5. Remove the Peak Pole Socks

Carefully unclip or remove the canopy socks from the peak poles.

This step is important, as forcing the frame closed while still attached can damage the peak pole fittings.

Step 6. Remove the Canopy

Lift the canopy away from the frame carefully.

Avoid allowing the fabric to catch against sharp frame edges.

Step 7. Fold the Canopy Carefully

Fold the canopy neatly and place it safely aside.

If the canopy is wet, allow it to dry fully before long-term storage.

Step 8. Fully Lower the Legs

Collapse all telescopic legs to their lowest setting.

Step 9. Fully Collapse the Gazebo

Push the frame together slowly until fully closed.

Take care not to trap fingers between moving sections.

Step 10. Store the Gazebo Correctly

Place the frame back into the storage bag first, followed by the folded canopy.

Store the gazebo in a dry, ventilated area.

Common Mistakes When Putting Up a Gazebo

Avoid these common setup mistakes:

• forcing the frame open too quickly
• erecting the gazebo in strong winds
• forgetting weights or anchors
• trapping canopy fabric in joints
• storing the canopy while damp
• dragging the frame across hard ground

Most accidental gazebo damage happens during setup or dismantling rather than normal use.

Looking After Your Gazebo

Regular maintenance helps extend the lifespan of your gazebo significantly.

Cleaning

Use:

• warm water
• mild soap
• a soft sponge or cloth

Avoid pressure washers or harsh chemicals.

Storage

Always:

• dry the canopy fully
• store indoors where possible
• use a protective storage bag

Inspections

Check regularly for:

• loose bolts
• damaged joints
• worn canopy sections
• bent frame components

Spare Parts and Repairs

If accidental damage does occur, Gala Tent stock a full range of:

• spare parts
• replacement canopies
• frame components
• repair accessories

This allows many gazebos to be repaired rather than fully replaced, helping extend product lifespan and improve long-term value.
